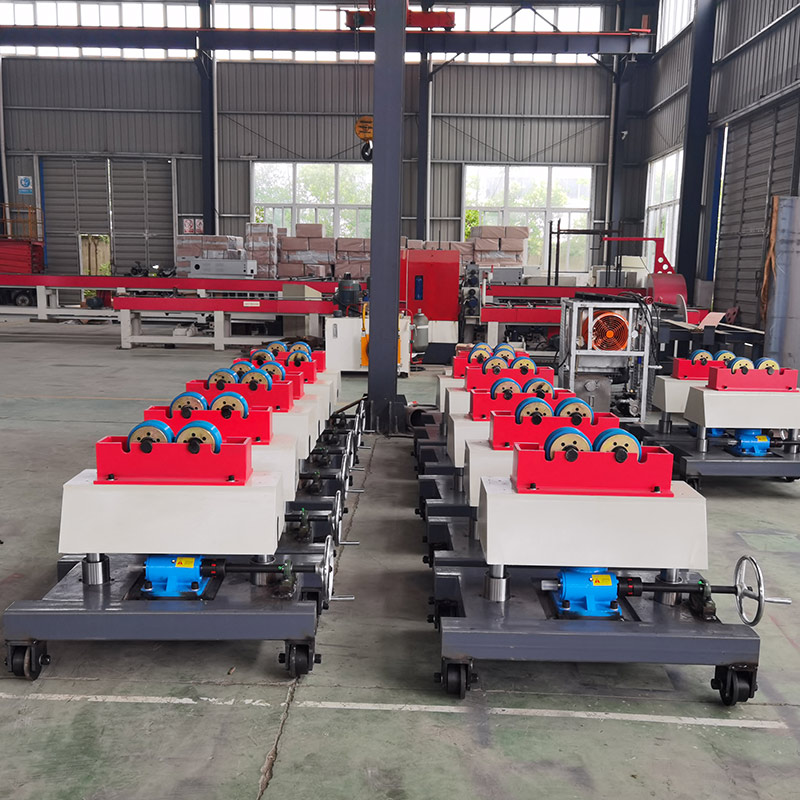

Transverse Pipe Automatic Conveying System

The transverse pipe automatic conveying system conveys the pipe or spool pieces transversely when they are beveling or automatically welding.


Features:

It increases the automatization level in the pipe fabricating plant and decreases the hazards during hoisting.
Patented product; achieving lateral conveying quickly, smoothly, and securely, able to replace the turnover mechanism; two or three conveying trolleys equipped with single screw and single guiding rod; 18# light rails; electric lifting and moving; VF step-less speed control; manual control on console (wireless remote control for option).
Patented product; achieving lateral conveying quickly, smoothly, and securely; able to replace the turnover mechanism; two or three conveying trolleys equipped with double screws and four guiding rods; two or three 18# light rails; electric lifting and moving; VF step-less speed control; manual control on console (wireless remote control for option).

Technical Parameters:

Pipe Diameter Applicable: DN400/DN600; DN400/DN600/DN800/DN1000
Conveying Length: ≥1000MM (or depending on customers’ requirements)
Line Length: 7.5M (or depending on the situation)
Line Height: 800MM
Trolley Number: 4 sets
Lifter Mechanism: With screw lifter, driven electrically
Lifter Route: ±30MM
Conveying Mechanism: Chain sprocket mechanism
Speed of Conveying: 0-10M/min
Max Loading Capability: 2500KGS/5000KGS

Applications:

Used for pipeline transportation

After-Sale Service Commitment:

After-Sale Service Guideline: ” Worry what users worry, think what users think ”
Within/beyond the warranty period, when the equipment gets out of order or is damaged, the company will provide technical consulting services without or with a charge. For customer advisory, the company will supply responses on the phone within 4 hours and written replies within 8 hours. If the customer requires, within 24 hours (within the distance of 800 KM) or within 48 hours (above 800 KM), the company will dispatch experienced engineering technical personnel to the customer site to analyze and guide maintenance. They will not leave until the fault is cleaned and the customer is satisfied.

transverse pipe automatic conveying system6transverse pipe automatic conveying system7transverse pipe automatic conveying system8
