Pipe Fabrication Production Line (Transportable Type)

Based on modern factory facilities, it is equipped with an intelligent pipe conveying system which is matched with the pipe spool prefabrication production line, and the additional intelligent lighting system, the intelligent access control system, the intelligent fire extinguishing system, and the intelligent smoke and dust removal system, etc. to be constituted a complete set of the intelligent plant system.


Features:

1. The basic configuration of the pipe fabrication production line consists of many sets of pipe cutting and bevel machining workstations, many sets of mechanical fitting-up workstations, many sets of piping automatic welding workstations, a set of conveying systems, and a set of steel structure pipe racks.
2. The pipe fabrication production line offers high production efficiency – hoisting with cantilever crane, beveling with pipe bevel machining workstation, and welding with piping automatic welding workstation.
3. It offers excellent equipment mobility without the limitation of radiation radius by using containers as a carrier.

Technical Parameters:

Production Capacity: 20-80 thousand diameter-inch/month (or depending on workshop area and equipment configuration or as per request)
Pipe diameter applicable: DN400/DN600
Pipe Thickness: 3-80MM
Conveying Speed: 2-20M/Min
Beveling Speed: ≤5Min/Two Bevels (DN200 SCH40)
Automatic Welding Rate: ≥60%
Prefabrication Ratio: 50%~80%
Design Software: PDSOFT 3Dpiping
Management Software: PDSOFT SPFMS

Applications:

The pipe fabrication production line is used on piping projects all over the country where the total amount of work is on a smaller scale.

After-Sale Service Commitment:

After-Sale Service Guideline: ” Worry what users worry, think what users think ”
Within/beyond the warranty period, when the equipment gets out of order or is damaged, the company will provide technical consulting services without or with a charge. For customer advisory, the company will supply responses on the phone within 4 hours and written replies within 8 hours. If the customer requires, within 24 hours (within the distance of 800 KM) or within 48 hours (above 800 KM), the company will dispatch experienced engineering technical personnel to the customer site to analyze and guide maintenance. They will not leave until the fault is cleaned and the customer is satisfied.

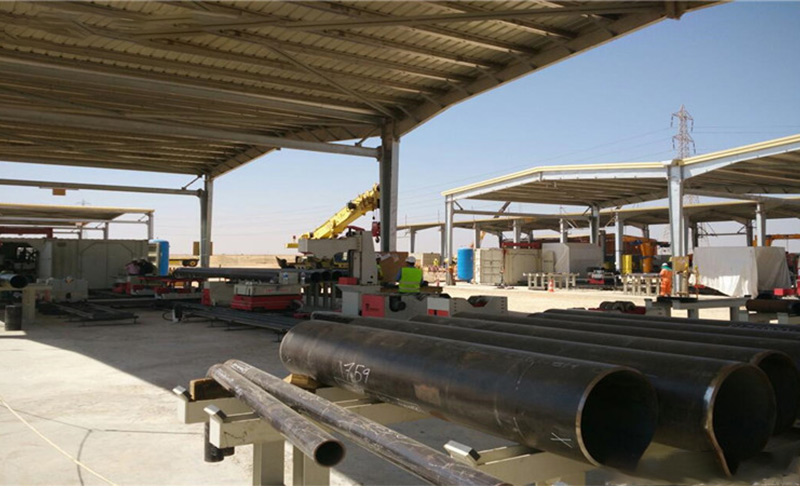

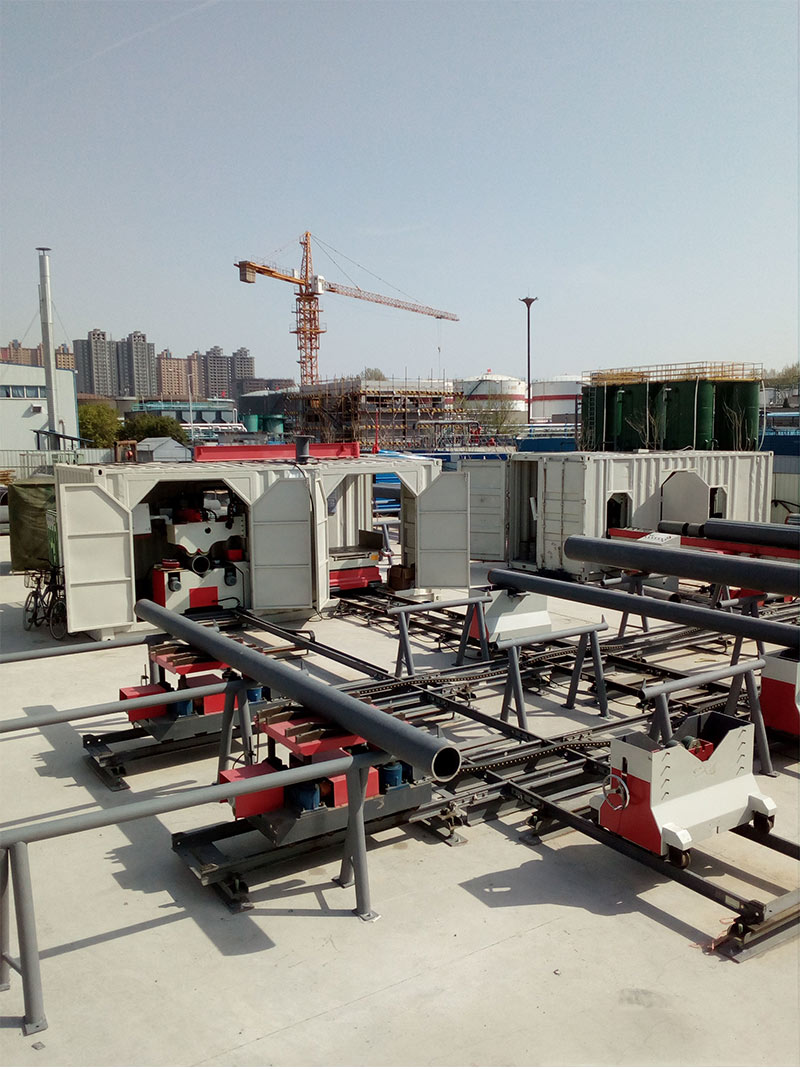

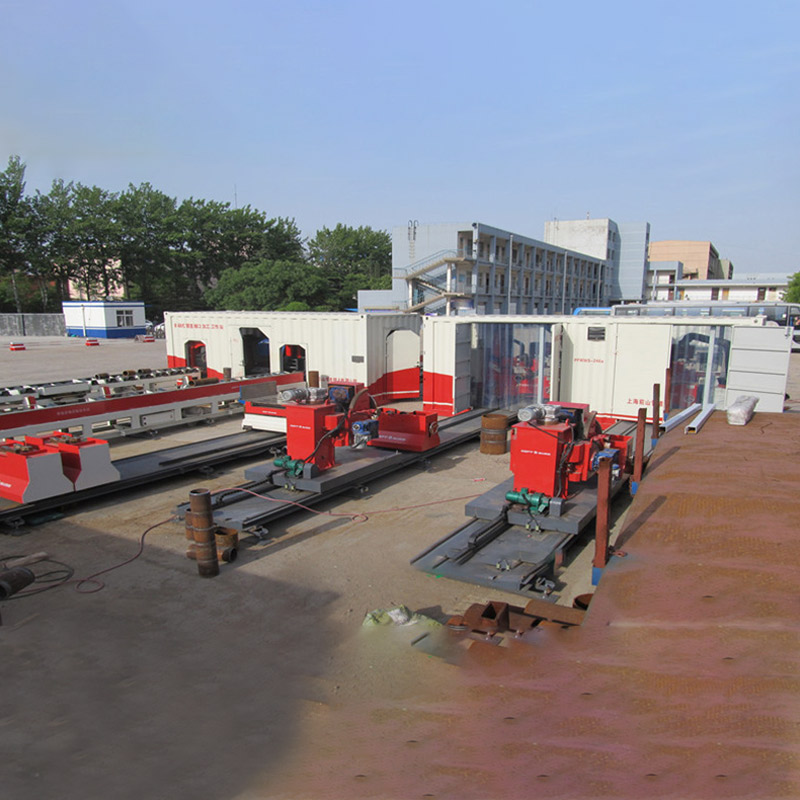

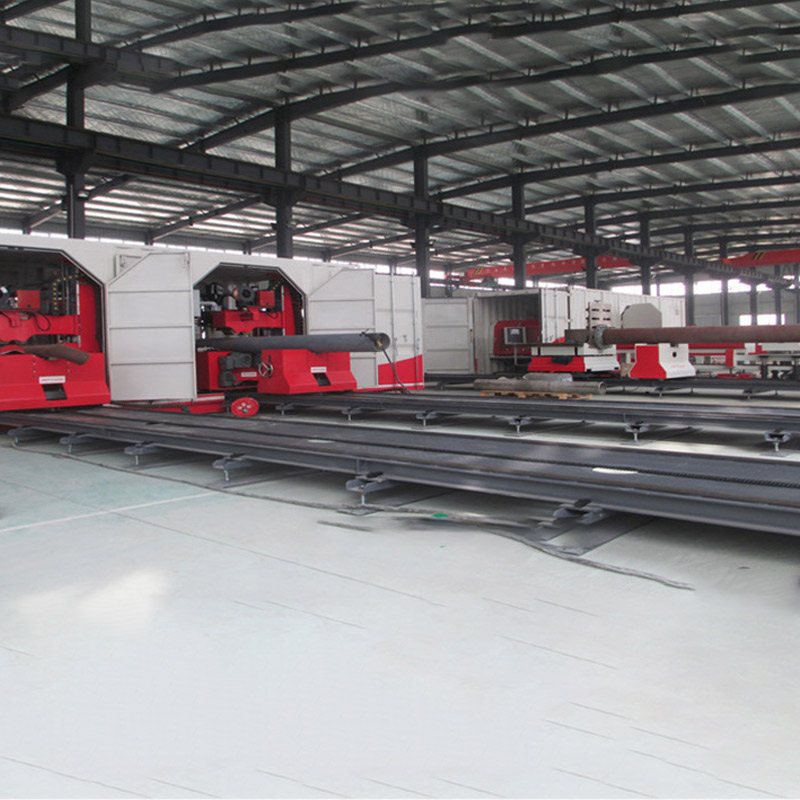

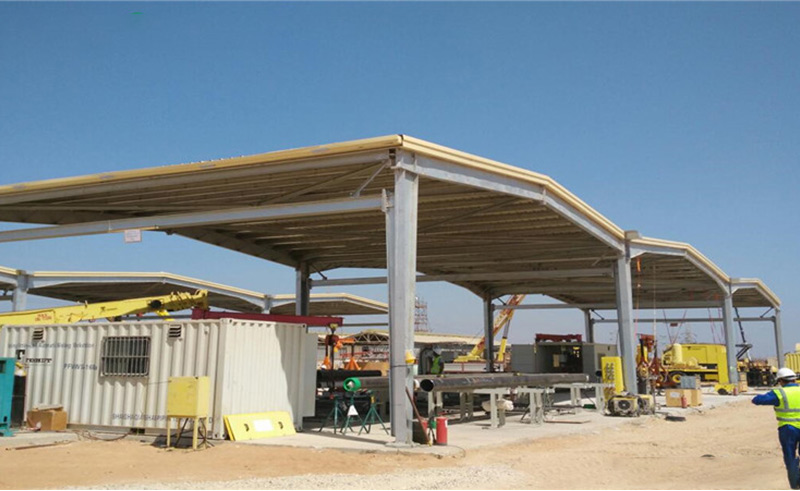

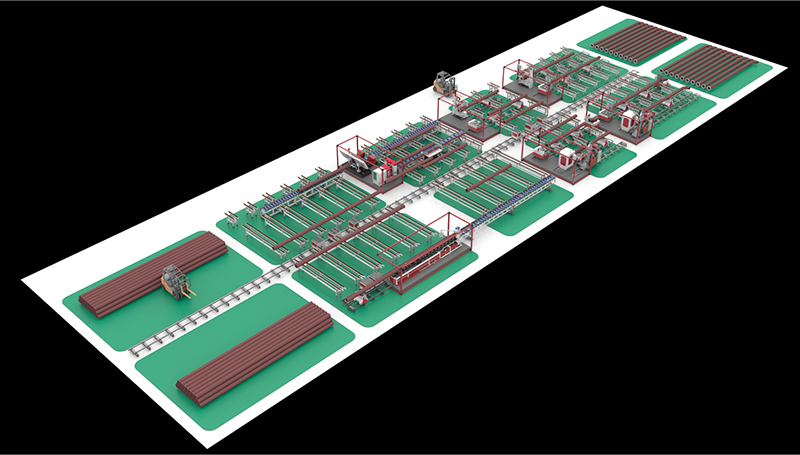

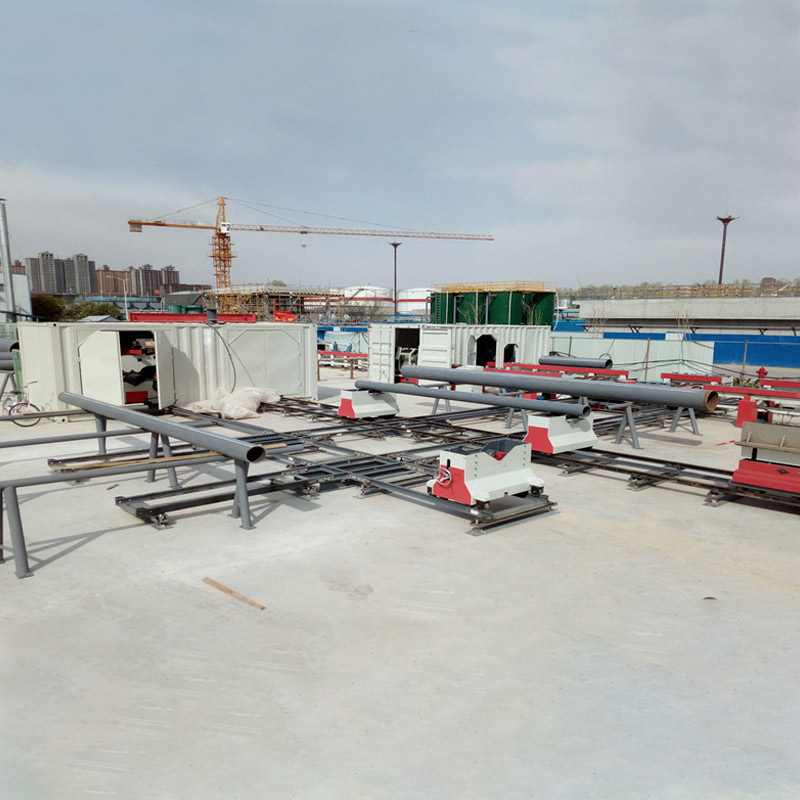

pipe fabrication production line (transportable type) 5pipe fabrication production line (transportable type) 6pipe fabrication production line (transportable type) 7pipe fabrication production line (transportable type) 8pipe fabrication production line (transportable type) 9
