Pipe Fabrication Production Line (Fixed Type)

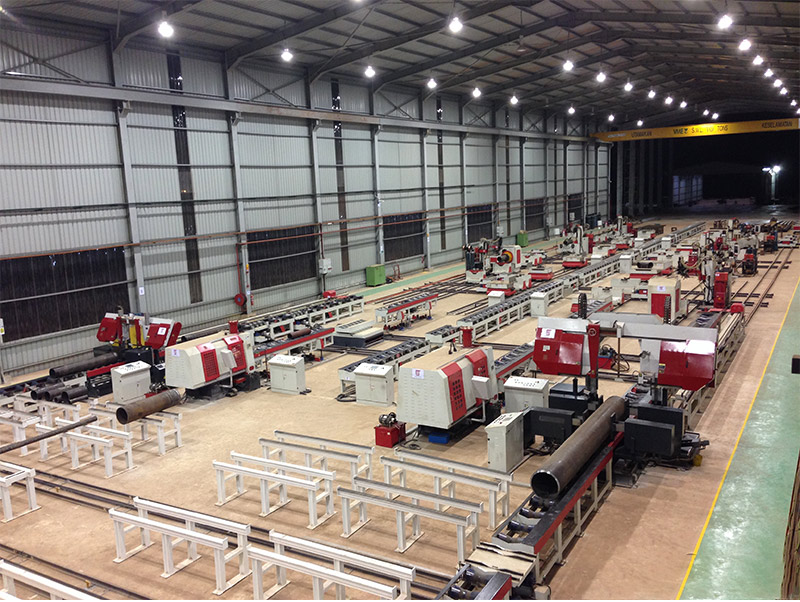

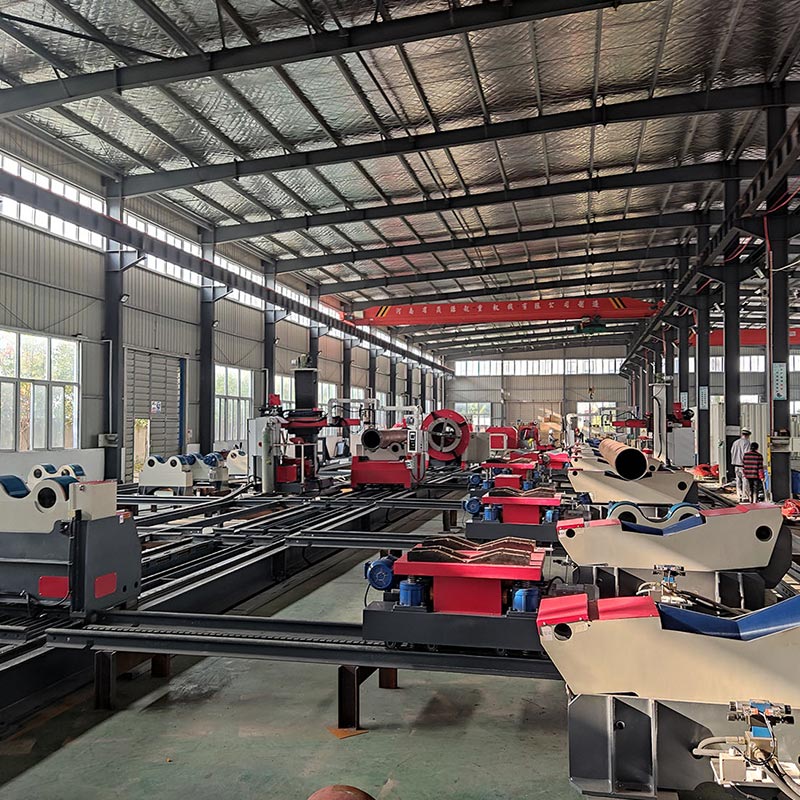

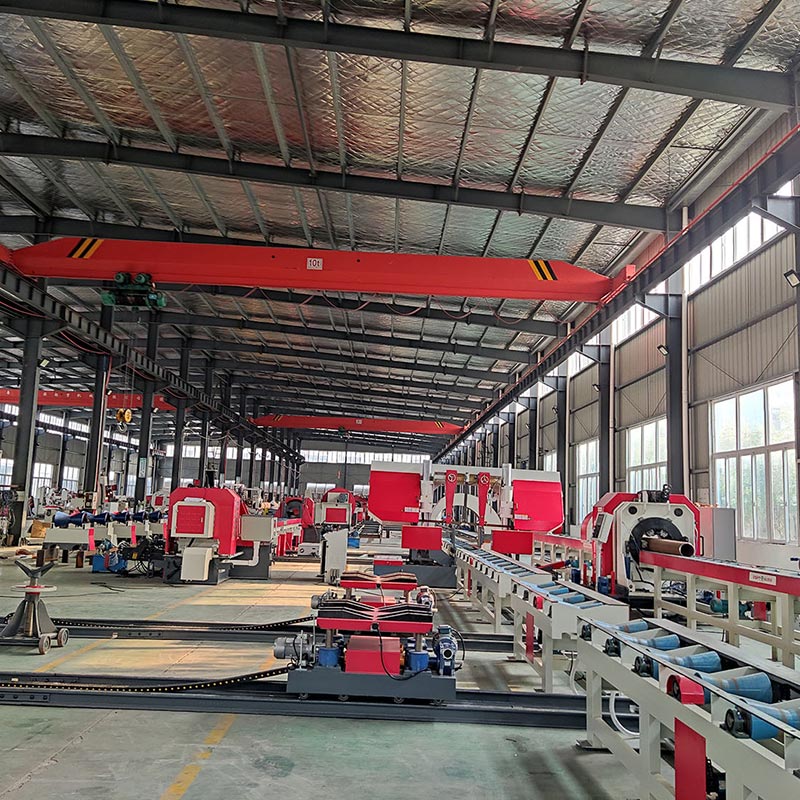

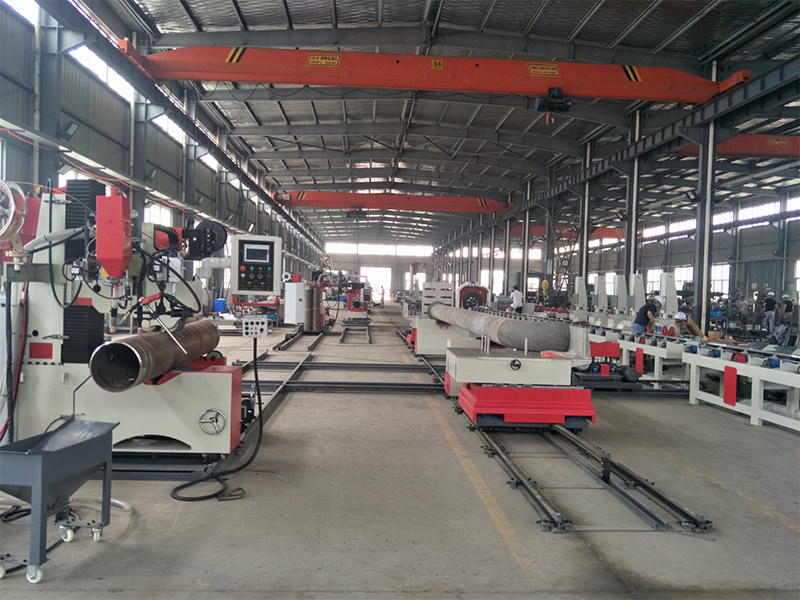

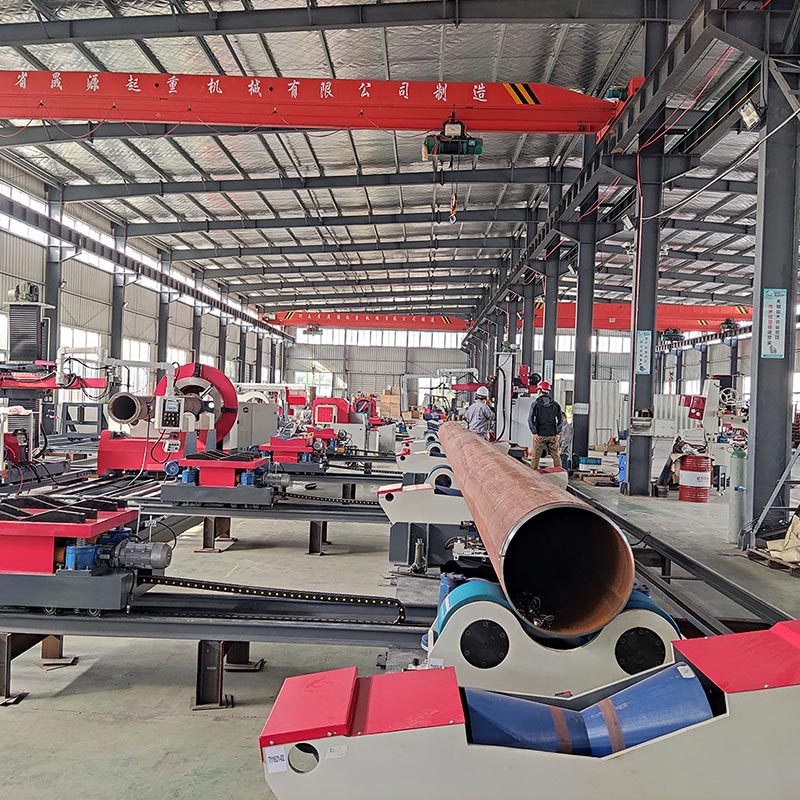

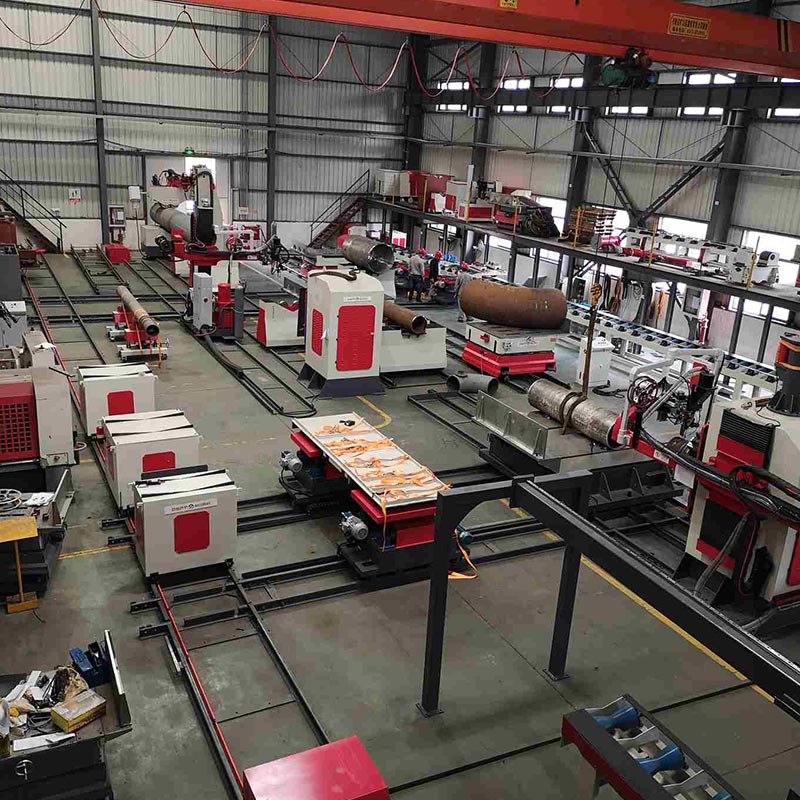

Utilized the fixed type workshop; Using PDSOFT Pipe fabrication Detail Design Software for designing spool pieces; using PDSOFT Pipe Fabrication Process Management Software for elaborate management with high efficiency; using CNC cutting & beveling equipment for high-quality mechanical bevel; using the fitting-up machine for fast spool pieces fit-up; using various types automatic welding machines for high-efficiency high-quality MIG root welding with QSPT’s technology; using SAW for high efficiency fill in and cap welding; equipped with adequate numbers of conveying systems capable of longitudinal/lateral conveying to ensure safe and reliable ground conveying.


Features:

The basic configuration of the pipe fabrication production line consists of one set of fixed-type high-speed pipe cutting and beveling machines, one set of roller-bench-type pipe plasma cutting and beveling machines, one set of high-speed pipe cutting band saw machines + two sets of fixed-type pipe end beveling machine, many sets of piping prefabrication fast fitting-up machine, many sets of piping prefabrication automatic welding machine or piping automatic welding machine (cantilever type), a set of automatic conveying system and a set of steel structure pipe racks.
The pipe fabrication production line offers excellent production efficiency – hoisting with overhead traveling crane, beveling with high-speed cutting and beveling machine, and welding with an automatic welding machine.
As this is a fixed type of pipe fabrication product line, the equipment cannot be easily moved.

Technical Parameters:

Production Capacity: 20-150 Thousand Diameter-Inch/Month (or depending on workshop area and equipment configuration or as per request)
Pipe diameter applicable: DN400/DN600/DN800/DN1000/DN1200
Pipe Thickness: 3-80MM
Conveying Speed: 2-20M/Min
Beveling Speed: ≤5Min / Two Bevels (DN200 SCH40)
Automatic Welding Rate: ≥60%
Prefabrication Ratio: 50%~80%
Design Software: PDSOFT 3Dpiping
Management Software: PDSOFT SPFMS

Applications:

This fixed-type pipe fabrication production line is used for pipe projects or piping prefabrication projects that are within 500KM from the center of the workshop.

After-Sale Service Commitment:

After-Sale Service Guideline: ” Worry what users worry, think what users think ”
Within/beyond the warranty period, when the equipment gets out of order or is damaged, the company will provide technical consulting services without or with a charge. For customer advisory, the company will supply responses on the phone within 4 hours and written replies within 8 hours. If the customer requires, within 24 hours (within the distance of 800 KM) or within 48 hours (above 800 KM), the company will dispatch experienced engineering technical personnel to the customer site to analyze and guide maintenance. They will not leave until the fault is cleaned and the customer is satisfied.
